A-Frame 2440-QP
A-Frame 2440-QP
Ideal for transporting and storing material within the factory or transporting material to building sites. Frame can be loaded onto truck by forklift or crane.
Features
- Sturdy structure, designed so as to eliminate any risk of slab tipping over
- Slabs are placed on special rubber profiles and secured with 6 adjustable locking bars
- Six locking bars per frame mount in slotted holes on the bottom
- Frame features 2 hooking points to be picked up by an overhead crane
- Built-in brackets on all underneath sides for forklift transport
- Double brake pin release wheels
- Width of slab storage base area on each side: 320mm
- Powder coat finish

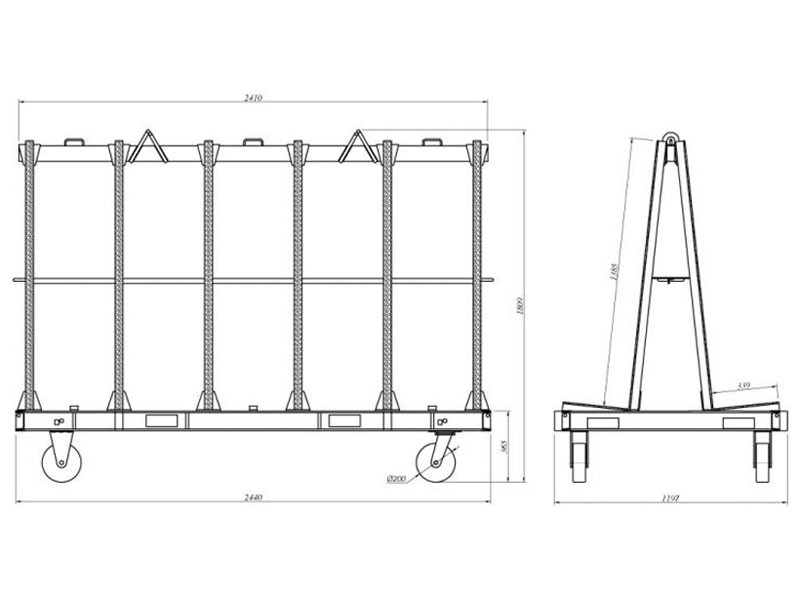

Specifications
Dimensions: L2440 x W1197 x H1810mm
Eyelets Capacity: 3000kg
Stationary Capacity: 4000kg
Weight: 220.5kg
