Aardwolf Slab Lifter 75A
Aardwolf Lifters - Automatic Model

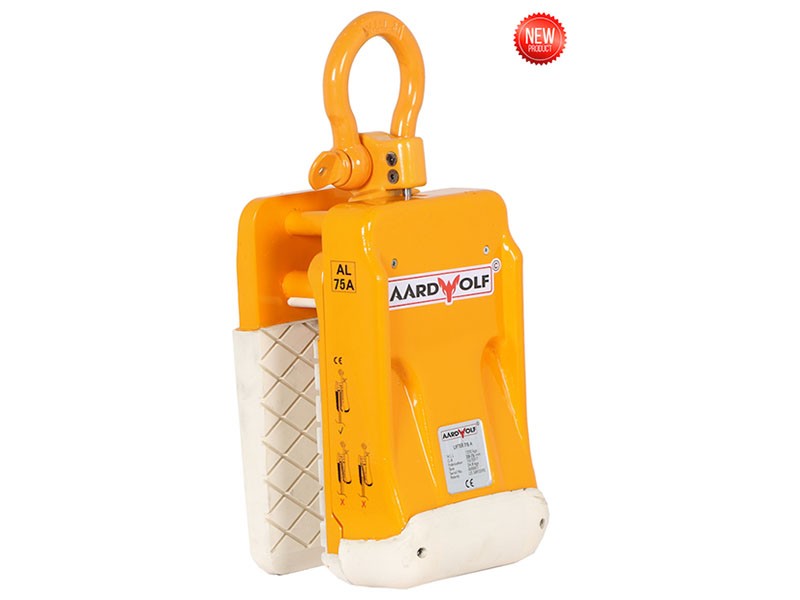

Aardwolf Slab Lifter 75A
Aardwolf offers a new version of its patented Aardwolf Slab Lifters. The new Aardwolf Slab Lifter Automatic 75A has an integrated auto-lock, unlock mechanism (patent pending), which allows the clamp to automatically grip slabs on pick-up and release the slabs on set down. In many situations this makes moving and handling of slabs safer and more convenient.
Application
For lifting 30 to 75mm thick material (WLL 1200kg).
Features
Size: Being of a compact construction, the Aardwolf Lifter 75A allows for close packed slabs to be lifted out of racks and containers. Lower height slabs placed along side of taller slabs offer no problem, as is the case with scissor clamps.
Versatile: Ideal for construction work, because the clamping mechanism is at the front of the slab, this allows panels to be placed close against walls.
Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.
Secure: The Aardwolf clamps grip slabs firmly. The Aardwolf Lifter 75A has a force multiplying factor of approximately 2.5 to 1.
We declare that this product is in conformity with the following standard: AS 4991-2004 Lifting Devices.
Specifications
Package Dimensions: L420 x W230 x H250mm
Weight: 26.2kg
