Vacuum Glass Lifter AVGLP4

Vacuum Glass Lifter AVGLP4

Vacuum Glass Lifter AVGLP4

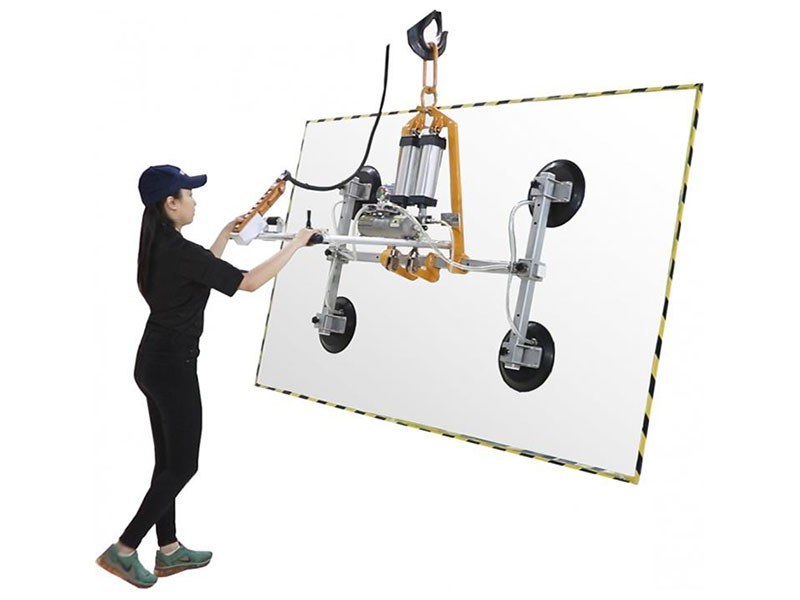

Pneumatically powered, the Vacuum Glass Lifter AVGLP4 is designed for efficient material handling, capable of lifting glass panels and non-porous materials weighing up to 400 kg. It offers rugged construction and includes advanced features for safely lifting and tilting panel materials.

Features

• Pneumatic vertical-horizontal tilting from 0 to 90°
• Stainless steel vacuum tank ensures safety in the event of an unexpected power outage
• Automactic vacuum pumping if vacuum loss occurs
• Acoustic and visual alarm system
• Attach/release material with an on/off slide valve

We declare that this product is in conformity with the following standard: AS 4991-2004 Lifting Devices.

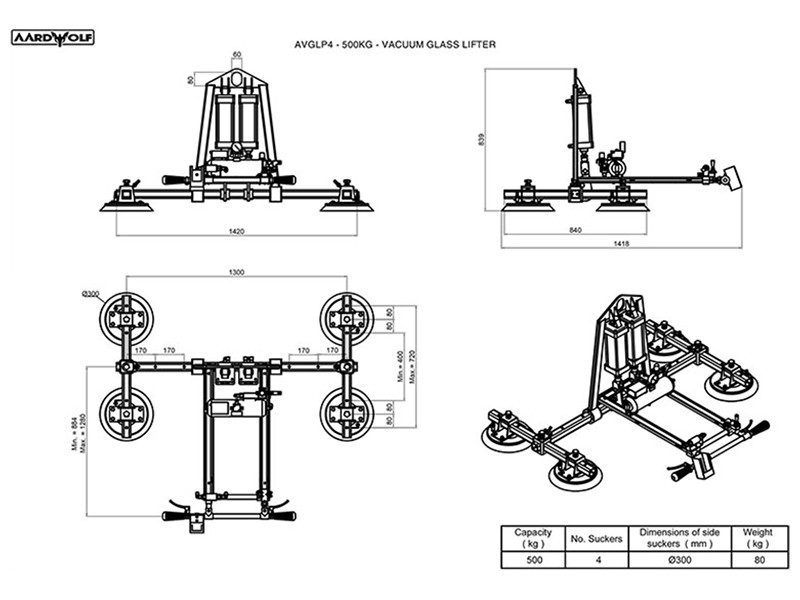

Specifications

Suction Pad Dimension: Seal to seal 280
Number of Pads: 4
Lifting Capacity:
- Horizontal Lifting: 400kg
- Vertical Lifting : 200kg

Compressed Air Requirement
Air Consumption: 180 l/min
Supply Air Pressure: 5 bar at the vacuum lifter

Alarm System Battery Information
- Power Supply: 3.7V Lipo Battery
- Battery Capacity: 2000mAh x1
- Standby Time: 720h
- Charging Cycle: 1000 times
- Charging Time: 2h
- Non Stop Working Time: 7h

Packaging Dimensions: L1480 x W380 x H960mm
Weight Of Unit: 79kg
