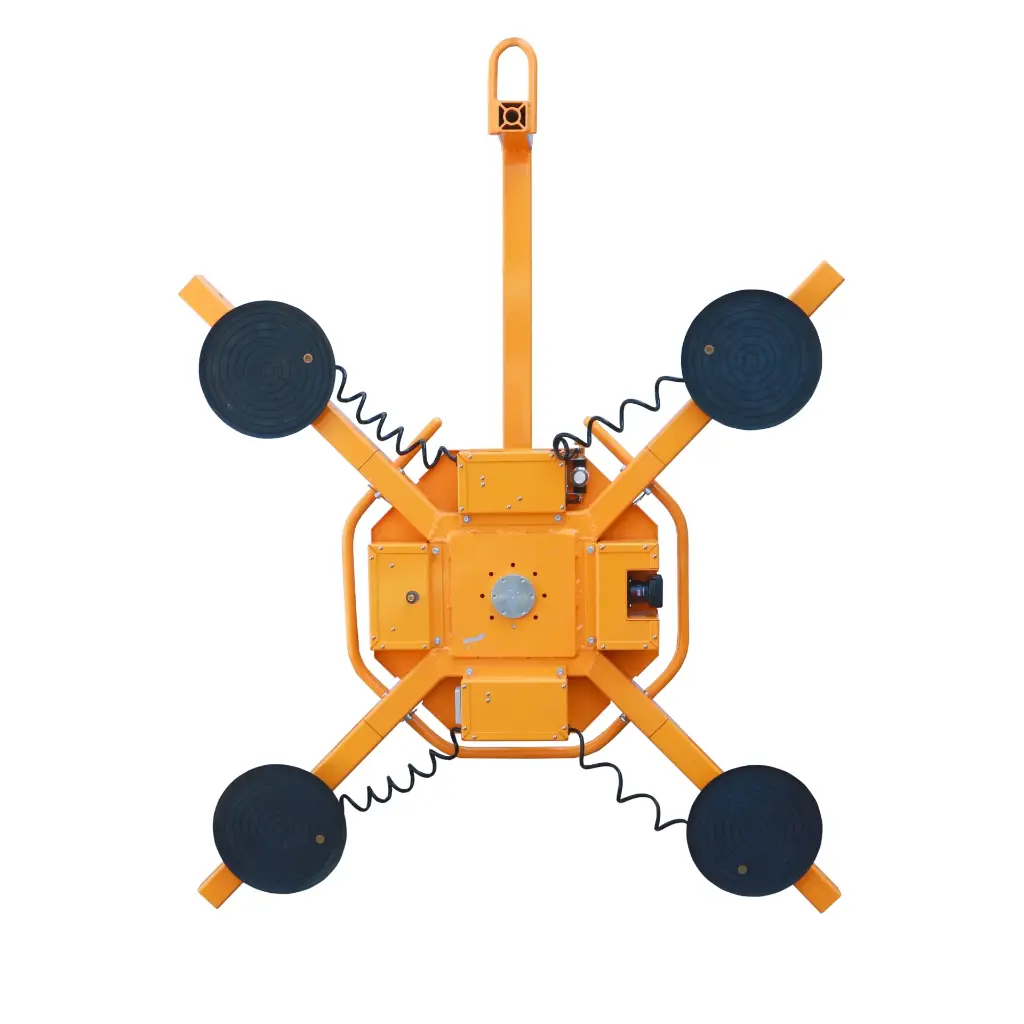

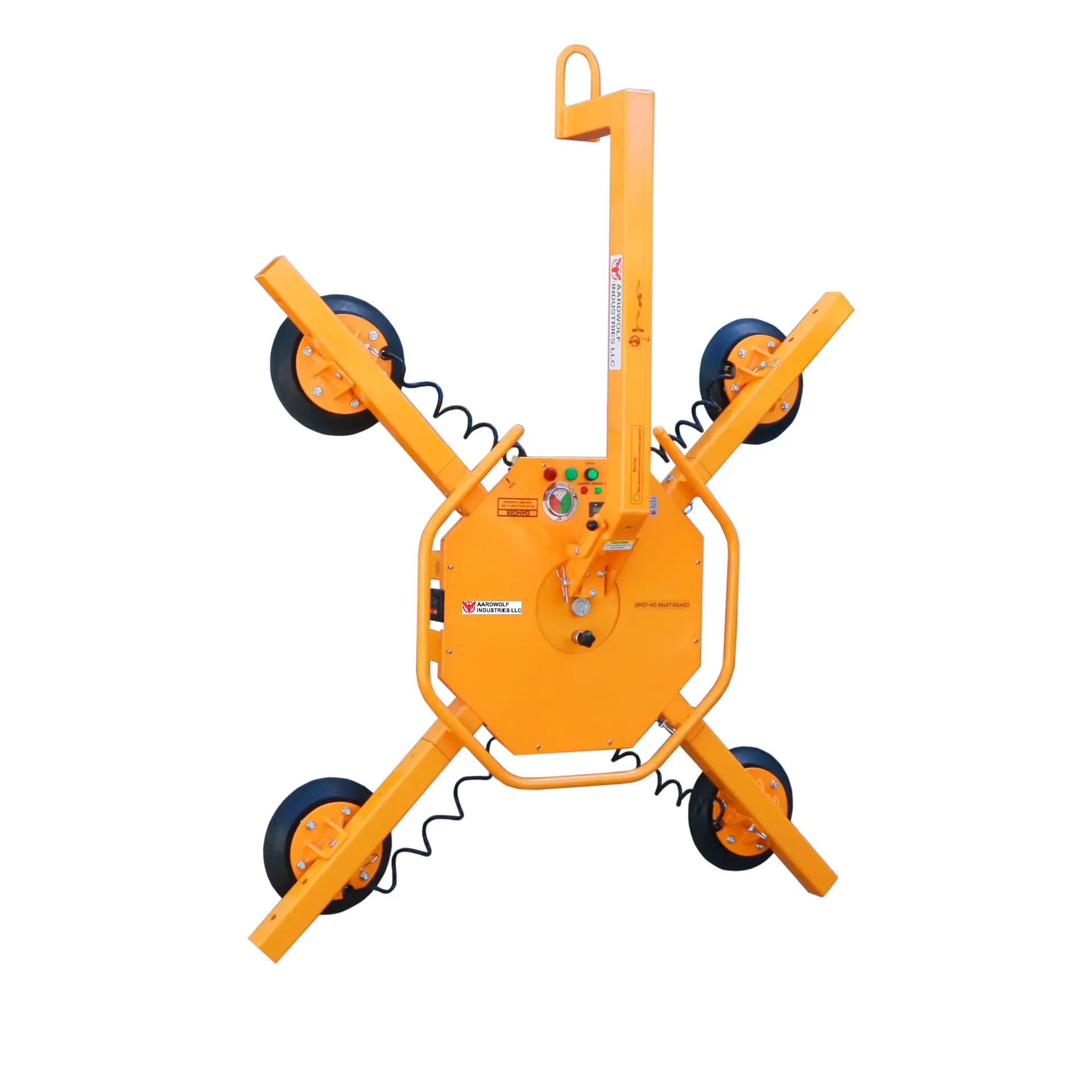

DC Powered Vacuum Glass Lifter ARGL-500

Overview

The DC Powered Vacuum Glass Lifter ARGL-500 is designed for lifting and transporting glass panels weighing up to 500 kg. This vacuum glass lifter is ideal for applications such as window installation, façade work, and handling large glass sheets in both workshops and construction sites.

Powered by a self-contained DC system, the ARGL-500 enables stable, cord-free operation, making it suitable for on-site use. Its adjustable extension arms and removable suction pads allow flexible handling of different glass sizes and configurations.

How It Works

The ARGL-500 uses a vacuum pumping system to create a secure suction force between the lifting pads and the glass surface.

Once positioned, the system generates vacuum pressure to firmly grip the material, allowing operators to safely lift, move, rotate, or tilt glass panels during handling and installation.

Key Features

• Automatic vacuum pumping system for stable lifting performance
• 360° manual rotation with 45° increments for precise positioning
• 90° manual tilting for both vertical and horizontal handling
• Visual and audible warning system for operation monitoring
• 12V battery-powered system for independent job site operation
• Adjustable extension arms for handling various glass sizes
• Spring-loaded suction pads for improved grip and stability

Applications

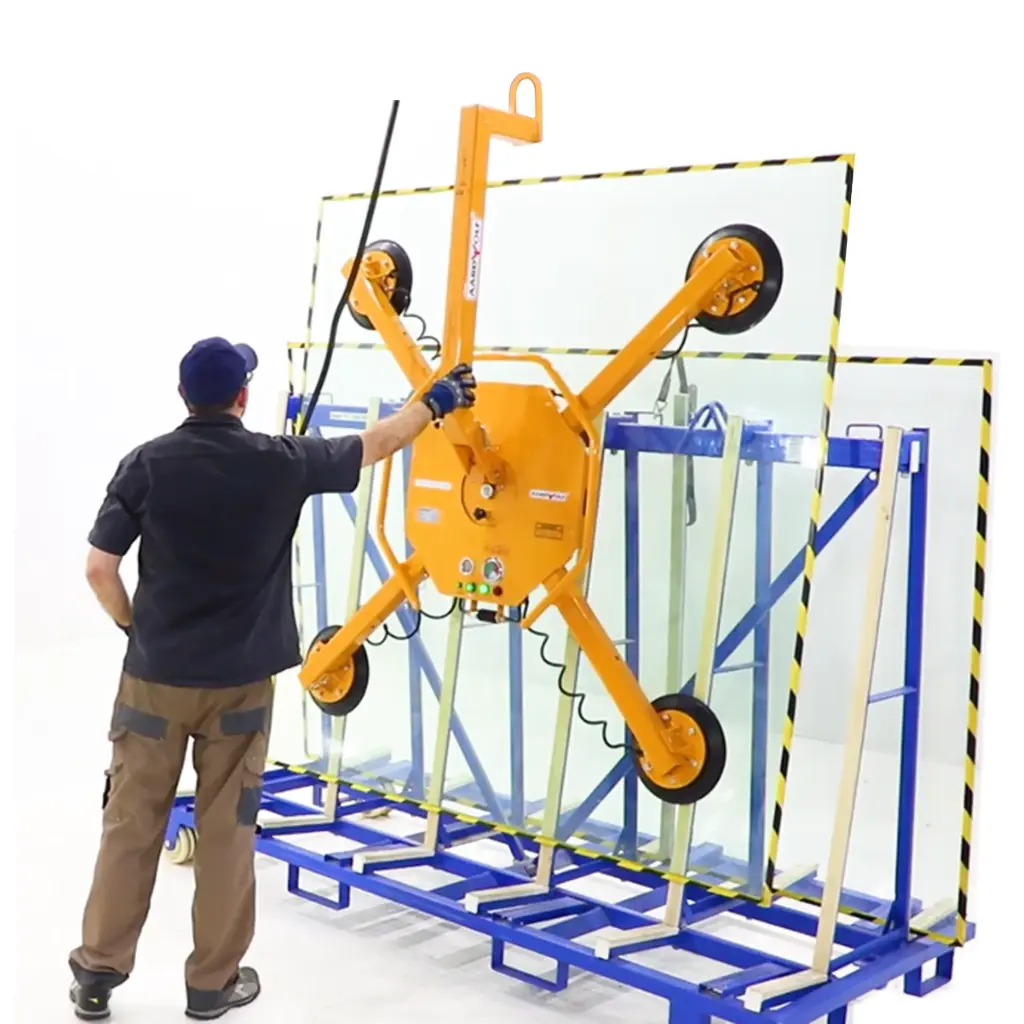

• Glass installation and façade projects
• Window and curtain wall installation
• Glass manufacturing and processing facilities
• Material handling for large sheet materials

FAQ

1. What is the maximum lifting capacity of the ARGL-500?

The ARGL-500 vacuum glass lifter can handle loads up to 500 kg, making it suitable for large glass panel applications.

2. Can the ARGL-500 be used with cranes or forklifts?

Yes. The lifter is compatible with both cranes and forklifts, providing flexibility across different lifting operations.

3. Is the ARGL-500 suitable for outdoor job sites?

Yes. With its battery-powered design, the ARGL-500 supports cord-free operation, making it ideal for on-site glass handling tasks.

4. Can it handle different glass sizes?

Yes. The adjustable extension arms and repositionable suction pads allow the lifter to accommodate a wide range of glass panel sizes.
