AVLP Vacuum Lifter AVLP4-1000

Overview

The AVLP1-250 is a compact pneumatic vacuum lifter designed for handling stone slabs in confined workspaces such as small workshops or on-site installations requiring flexible operation.

With a single vacuum pad configuration, it is well suited for light-duty lifting tasks, offering better control when positioning materials. The 0–90° tilting function allows smooth transition between horizontal and vertical handling during fabrication or installation.

An integrated vacuum tank helps maintain suction in case of temporary air supply interruption, enhancing safety during lifting operations.

How It Works

The AVLP1-250 uses compressed air to generate vacuum suction through the pad. Once placed on the material surface, the system creates a secure grip and maintains stable pressure throughout the lifting process.

A pneumatic tilting mechanism enables rotation from horizontal to vertical (0–90°), while the slide valve allows quick attachment and release for efficient handling.

Key Features

• Compact single-pad design: Ideal for light-duty applications and restricted spaces
• Pneumatic 0–90° tilting: Enables easy transition between horizontal and vertical lifting
• Integrated vacuum tank: Maintains suction in case of temporary air loss
• Audio and visual safety system: Alerts the operator if vacuum pressure is insufficient
• Quick operation with slide valve: Allows fast attachment and release of materials

Applications

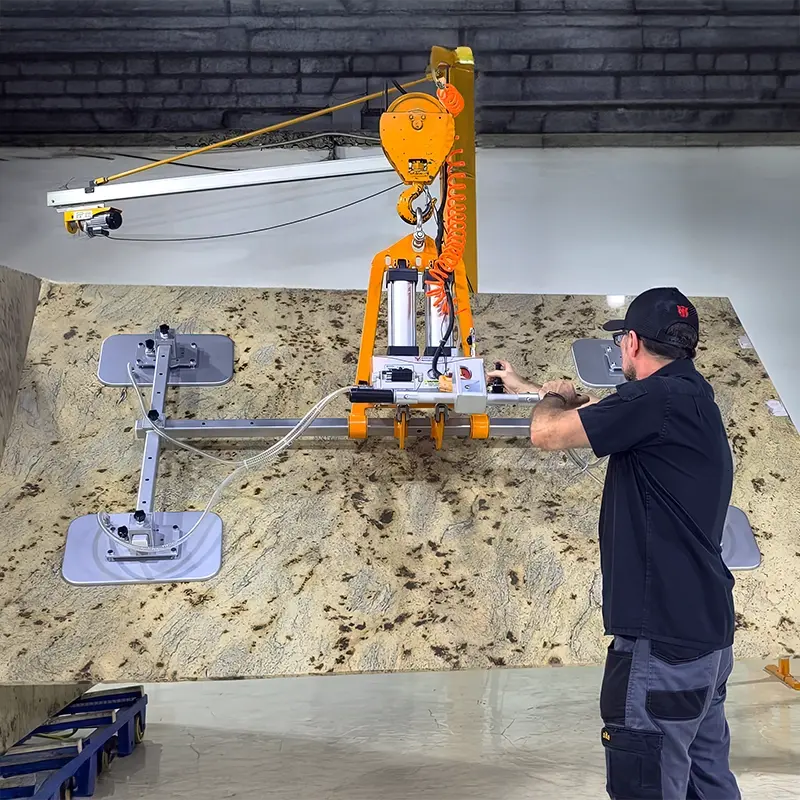

• Handling stone slabs in small workshops
• Supporting stone fabrication processes (cutting, polishing, finishing)
• Installation work with moderate load requirements
• Material handling in confined or restricted environments

Key Benefits

• Reduces labor, operated by one person
• Saves lifting and installation time
• Lowers operating costs and material damage risks
• Improves efficiency and reduces errors
• Fits small spaces with lower equipment investment
• Easy to use, no high skill required

Frequently Asked Questions (FAQ)

What materials is the AVLP1-250 suitable for?

It is designed for non-porous materials such as granite, marble.

How does the lifter keep the load secure during lifting?

Vacuum suction is continuously maintained throughout the operation, supported by a vacuum tank that helps retain pressure even during short air supply interruptions.

When should you choose the AVLP1-250?

This model is ideal for light-duty lifting, confined spaces, and applications where flexibility and ease of handling are prioritised.
